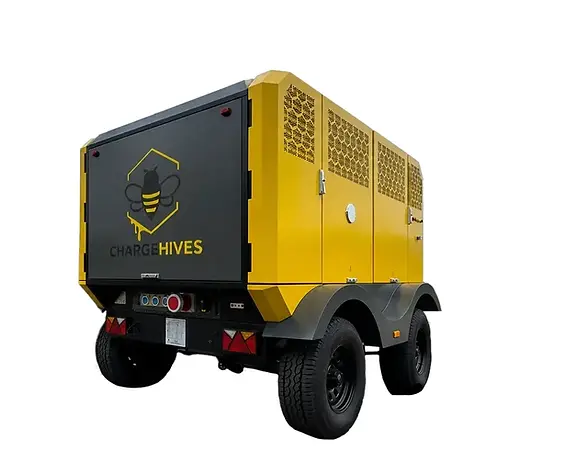

HiveCore™
260 kWh Mobile Energy Storage System
The HiveCore™ is a scalable mobile Battery Energy Storage System engineered for dependable everyday deployment. Designed for EV charging, commercial operations, construction sites, and backup infrastructure HiveCore™ delivers clean reliable power with the flexibility to adapt as energy demands grow. Built for higher utilization and all-day operation, HiveCore™ combines modular architecture, fast deployment, and rugged durability into one powerful mobile platform.
260 kWh
Usable Capacity
IP65
Weather Resistant
Scalable
Architecture
All Day
Operation
TECHNICAL SPECIFICATIONS
Complete Engineering Specifications
Compare UL and IEC configurations side-by-side. Electrical output, battery architecture, dimensions, environmental ratings, and operating characteristics.
HiveLite™
260 kWh Mobile Energy Storage System
261.25 kWh
Total System Capacity
140 kW
On-Grid Output Power
0.5C
Charge/Discharge Rate
IP65
Ingress Protection Rating
Liquid-Cooling
Thermal Management
9,700 lbs
Total System Capacity
−20 ~ 60°C
Operating Temperature
Aerosol
Fire Suppression
PARAMETER
UL CONFIGURATION
IEC CONFIGURATION
DC SIDE
Battery Cell
3.2 V / 314 Ah (LFP)
3.2 V / 314 Ah (LFP)
Battery Pack
1P52S
1P52S
Battery Energy Per Pack
52.25 kWh
52.25 kWh
Total System Capacity
261.25 kWh
261.25 kWh
System Voltage
832 VDC (728 VDC – 936 VDC)
832 VDC (702 VDC – 936 VDC)
Maximum Charge/Discharge Rate
0.5C / 0.5C
0.5C / 0.5C
ON-GRID OUTPUT
Output Power
140 kW
116 kW
Overload Capacity
168 kW
139.2 kW
AC Voltage
480 VAC
400 VAC
Output Current
168 A
168 A
Grid Frequency
50/60 (-2.5~2.5) Hz
50/60 (-2.5~2.5) Hz
Power Factor
1
1
OFF-GRID OUTPUT
Output Power
140 kW
116 kW
Output Frequency
60 Hz (40–70 Hz adjustable)
50 Hz (40–70 Hz adjustable)
SYSTEM ARCHITECTURE
Exterior Dimension (LxWxH)
3600 × 2200 × 2550 mm
3600 × 2200 × 2550 mm
Charge-Discharge Rate
0.5 C
0.5 C
Weight
4400 kg (~9,700 lbs)
4400 kg (~9,700 lbs)
IP Rating
IP65
IP65
Operating Temperature Range
−20 ~ 60°C
−20 ~ 60°C
Humidity Range
0 ~ 90% (Non-condensing)
0 ~ 90% (Non-condensing)
Cooling
Liquid-Cooling
Liquid-Cooling
Fire Suppression
Aerosol
Aerosol
Specifications may vary by region and are subject to change without notice.
KEY FEATURES
Built For Scale.
Engineered For Reliability.
HiveCore™ combines advanced lithium iron phosphate (LFP) battery technology with a rugged modular platform designed for demanding commercial and industrial applications. Built for higher energy throughput and long-term flexibility, it delivers dependable power wherever operations require it.
Scalable Architecture
Modular system design allows seamless expansion as energy requirements grow over time.
Balanced Capacity
Optimized for EV charging, construction power, commercial operations, and mobile infrastructure support.
Fast Deployment
Rapid setup and plug-and-play integration minimize downtime and simplify deployment.
Reliable & Rugged
Built for demanding environments with durable construction and dependable long-duration performance.
DC Fast Charging
Supports high-power charging and rapid energy delivery for demanding deployments.
DOWNLOAD BROCHURE
Get the full technical overview, specifications, and deployment details in one convenient brochure.
Detailed Specifications
Complete technical data and performance metrics.
Deployment Guide
Transport, setup, and operational guidelines.
Safety & Compliance
Certifications, standards, and safety information.
Use Cases & Applications
Real-world examples and industry applications.
No registration required. Instant Download.
